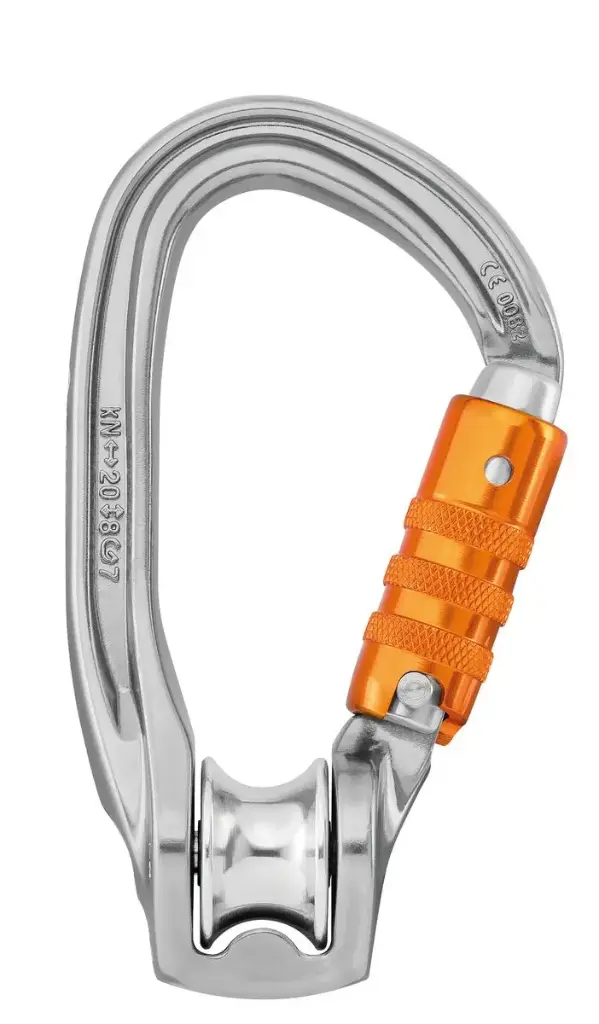

Pulley-carabiner that facilitates installation on anchors and devices
ROLLCLIP Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate installation on anchors and devices. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system.
Easier handling: - sheave mounted on sealed ball bearings for excellent efficiency - gate opening on the non-pulley side, to facilitate installation on devices - Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
H cross-section of carabiner: - ensures an improved strength-to-weight ratio - protects markings from abrasion
Two locking systems available: - TRIACT-LOCK: automatic locking with triple-action gate opening - SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
Material(s): aluminum
Min. rope diameter: 7 mm
Max. rope diameter: 13 mm
Sheave diameter: 18 mm
Maximum working load: 2 x 2 = 4 kN
Efficiency: 85 %
Major axis strength: 20 kN
Minor axis strength: 8 kN
Open gate strength: 7 kN
